Onboarding Microsoft 365 - Outbound

Modified on Sat, 7 Sep at 4:20 PM

About onboarding Microsoft 365 - Outbound

You can configure Perception Point X-Ray to scan outgoing [outbound] emails to detect malicious file attachments and malicious URLs. This outbound functionality can be added to inbound Microsoft 365 [Inline and API] integrations - and is performed using the Microsoft API connection method.

Note:

You can add this functionality for scanning outbound email only if your organization is configured to scan incoming Microsoft 365 email - using either the Microsoft 365 - Inline or the Microsoft 365 API connection method.
Don't enable the outbound scanning functionality if scanning for inbound email is not yet enabled.
Outbound scanning is not available for Google Workspace or Microsoft Exchange [on-prem] integrations.

Scan results will appear in the Scans page. In the Scans page, you can click the Outbound email filter icon [] to show scan results for outbound email only.

There are two benefits of enabling outbound email scanning:

Prevents negative consequences to your organization's reputation that may result from sending out malicious emails.
Improves inbound detection.

There is no quarantine available for outbound email scanning.
Outbound scanning includes scanning for malicious content - not for spam.

Licensing: There are no additional licensing requirements for enabling outbound scanning.

How to onboard Microsoft 365 - outbound - using the Microsoft API

The onboarding procedure includes these 3 steps:

"Step 1: Enabling outbound mail scanning"
"Step 2: Configuring outbound mail scanning"
"Step 3: Confirming the connection"

Step 1: Enabling outbound mail scanning

Outbound email can be configured to be scanned only if this "outbound" functionality is enabled - as described below.

In Perception Point X-Ray - in the left navigation menu, select Account > Channels.
Under Enabled Channels, on the right of Email Service > Microsoft 365, click Channel Settings. The "Email Service Settings" sidebar opens.
Click Edit [].

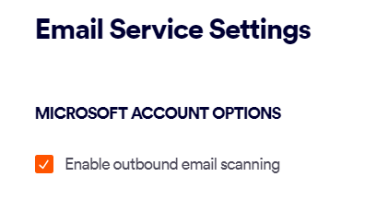

Under Microsoft Account Options, select the "Enable outbound email scanning check box."

Click Save.

Step 2: Configuring outbound mail scanning

After outbound scanning is enabled, as described above, you can configure the required outbound functionality, as described below.

On the right of the Perception Point X-Ray banner, click the Add Services [] icon.
Click Add A New Email Service - if this option appears.
Select the Organization - if necessary.

Specify the escalation contacts.

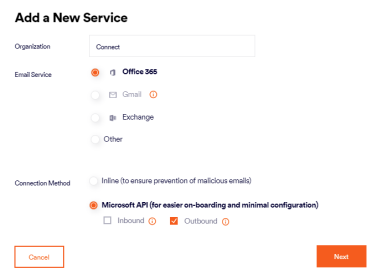

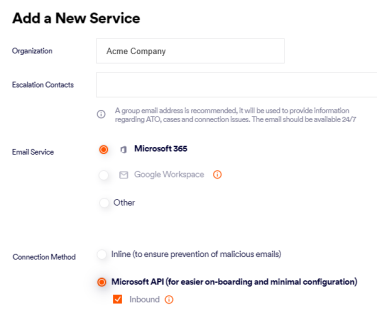

In Email Service, select Microsoft 365.
In Connection Method, select Microsoft API.
1. Select Inbound [Optional]. For details, see "Onboarding Microsoft 365 [API]"
2. Select Outbound. This option appears only if outbound scanning is enabled, as described above.

Click Next - to open the next step in the onboarding wizard.

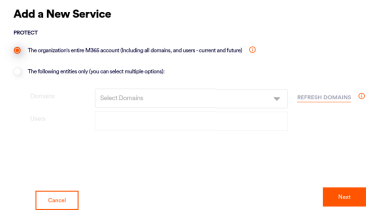

Select the domains that will be protected.

Important: Select exactly the same domains and users that are specified in the inbound configuration.

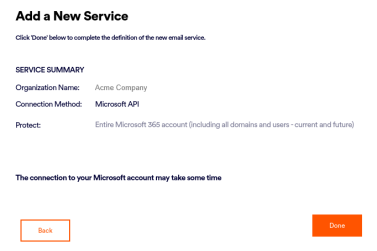

Click Next. A summary of the new email service will be displayed.

Review the details, and then click Done.

Step 3: Confirming the connection

After you enable and configure the "outbound" functionality - as described above - you can verify that the outbound functionality is now active.

In Perception Point X-Ray - in the left navigation menu, select Account > Channels.

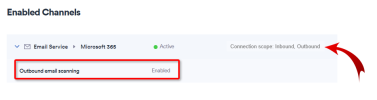

Under Email Service > Microsoft 365, verify that the connection scope includes Outbound, and that Outbound email scanning is Enabled.

Important: If Outbound email scanning scanning is not displayed as Enabled, refresh the page, and then recheck the Outbound email scanning status.

Scan results will appear in the Scans page. In the Scans page, you can click the Outbound email filter icon [] to show scan results for outbound email only.
